Centerline Quad Axle Wagon
The Centerline Quad Axle dump trailer is built to last. With an extremely wear and crack resistant dump body, a heavy duty turntable, and a 110,000 psi tensile frame flange and webb, you will feel confident hauling this trailer. Save time with the radius 12 box design, which decreases material build up meaning you won’t have to clean out the box after every load.
Trailer Features
Turntable
A Jost QT-100 heavy duty turntable is used for optimal life expectancy and maximum strength with minimum weight.
Crossmembers
Engineered laser cut flared end crossmembers increase torsional twist strength making the trailer much more stable.

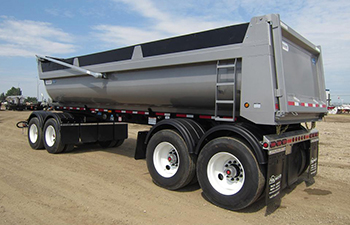

Box Strength
The Centerline box is constructed from 400-500 brinell strength steel which is extremely wear and crack resistant, giving you a long life cycle.
Frame
We use a 110,000 psi tensile frame flange AND webb, while the majority of other trailers only use high tensile flanges.
Box Design
The radius 12 box design decreases material build up saves you time by not having to clean out the box after every load.
Parallel Bearing Axles
Parallel bearing axles reduce the amount of friction and thus heat on the brake components, ultimately allowing for easier pulling capabilities.
| Model | RC-2500 |
| Width | 8'6" |
| Overall Length | 42'6" |
| Box Length | 15'10" |
| Overall Height | Top of sideboards: 123" |
| Box Length | 24'6" |
| Sidewall Height | 39" |
| Side Dump Capacity | 28.5 cu. yd. with 2” x 12” sideboards |
| Box | Radius style box design, 400-500 brinell tensile strength steel box construction, Formed tube style high tensile top beam, 52” forward slope bulk head design, 48” sloped tailgate c/w spreader chain slots, High tensile pin & bushing topping hinge assembly with (2) lubrication points, 2” x 12” finished spruce sideboards, Ladder located on the left box sidewall over 4” axle |
| Frame | QT-100 main frame rail flanges, Engineered laser cut flared ends crossmembers, Formed aluminum walking deck on front turntable area, Full width aluminum smooth rear mounted light panel |
| Hitch | Square tube style draw bar c/w rubber bushed pivots & lightweight swivel screw jack, Premier pintle eye drawbar c/w urethane bushings, 3 ton safety hooks & transport 70 chain on the underside of drawbar |
| Turntables | QT-100 dolly turntable frame, Jost grease type roller bearing turntable assembly c/w remote grease manifold |
| Hoist | 5 stage telescopic hoist, Single line system hydraulics: power up, gravity down, Quick coupler connection to suit truck wet line connection |
| Suspension | (4) 25,000 lb. air ride suspension |
| Axles | (4) 25,000 lb. axles @ 77.5” track c/w parallel spindles |
| Brakes | 16 ½” x 7” Q Plus quick change brakes c/w non asbestos lining, Automatic slack adjusters, Axle bearing system & Stemco HP seals, Remote grease manifolds on front & rear suspension to lubricate brake components, Meritor/WABCO 2S/1M ABS |
| Hubs & Drums | 10 stud steel piloted parallel hubs, long wheel studs & outboard cast drums |
| Wheels | 10 stud pilot mounted 8.25 x 24.5 steel disc wheels – silver |
| Tires | 11R-24.5, on-off road radial tires |
| Electrical System | Electric over air suspension dump & tailgate solenoid & (2) weigh gauges, LED rubber grommet mounted sealed lamps, Stop, turn, tail & ID lights are installed in rear of chassis, Front & side marker lights installed on dump body, Dual manual electric/over air solenoid tailgate trip, Midway turn signal on each side of trailer |
| Fenders | Black plastic tub style fenders over all tires |
| Mudflaps | Standard equipped full mud flap package |
| Load Cover | Michel’s Dura-Flip c/w electric winder & mesh tarp |
| Finish | Sandblasted, primed, and painted with PPG urethane paint, Sideboards to match trailer chassis, Document holder installed on frame side rail |
| Safety Tape | Applied as per regulations |
| Warranty | 1st year – 100% parts & labour; 2nd year – 50% parts & labour; 3rd to 5th year – 50% parts only |
- Aluminum wheels, lightweight hubs, and Centri-Fuse drums
- Michel’s Gravel Guard retractable PVC load cover
- Electric drive tarp
- Quick-Slide UHMW box liners liners (+)
- Tuff-Lift axle lift system (+)
- Load slide control electric box vibrators (+)
- Onboard scale systems (+)
- Calcium sprayer (+)
- Sealed tailgate
- Highlift tailgate
